Description

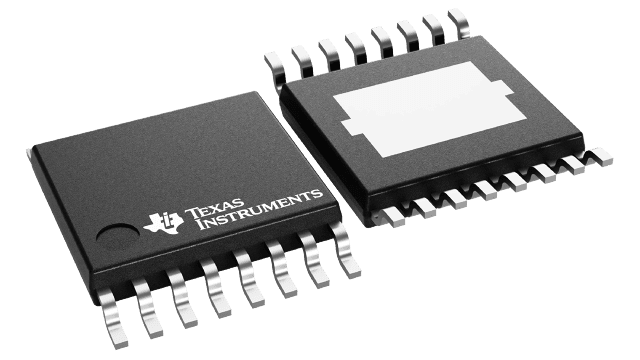

LM46000PWPR Texas Instruments - Yeehing Electronics
3.5 - 60V, 500mA Synchronous Step-Down Voltage Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.57 |
| 100 — 249 | 8.15 |
| 250 — 999 | 7.29 |
| 1,000 + | 6.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Output Voltage | 1 V to 28 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 60 V |
| Topology | Buck |
| Input Voltage MIN | 3.5 V |
| Switching Frequency | 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM46000 |
| Packaging | Reel |
| Height | 1.2 mm |
| Input Voltage | 3.5 V to 60 V |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 24 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.5 V |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| LM46000PWPR Datasheet |
More Information
The LM46000 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 500 mA of load current from an input voltage range of 3.5 V to 60 V. The LM46000 provides exceptional efficiency, output accuracy and dropout voltage in a very small solution size. An extended family is available in 1 A and 2 A load current options in pin-to-pin compatible packages. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-to-use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM46000 device is available in the 16-pin leaded HTSSOP (PWP) package (6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch. Pin-to-pin compatible with LM46001, LM46002, LM43603, LM43602, LM43601, and LM43600.
