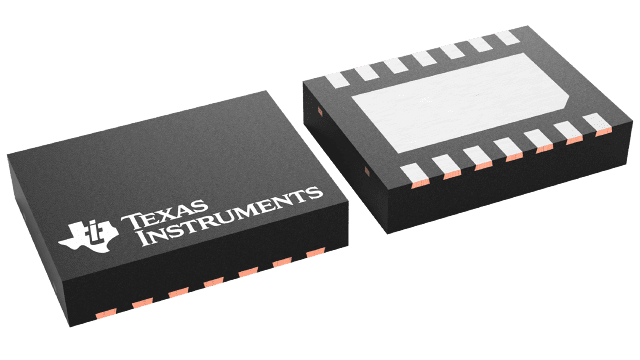

LM4666SD/NOPB Texas Instruments - Yeehing Electronics
1.2-W, stereo, analog input Class-D audio amp with selectable gain
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.012 |
100 — 249 | 0.836 |
250 — 999 | 0.601 |
1,000 + | 0.36 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | LM4666 |
Product | Audio Amplifiers |
Class | Class-AB |
Output Power | 1.2 W |
Mounting Style | SMD/SMT |
Package / Case | LLP-14 |
Audio - Load Impedance | 4 Ohms |
THD plus Noise | 0.65 % |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 2.8 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Description/Function | Speaker |
Height | 0.8 mm |
Input Type | Analog |
Length | 4 mm |
Output Type | 2-Channel Stereo |
Supply Type | Single |
Width | 3 mm |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
CMRR - Common Mode Rejection Ratio | 48 dB |
Development Kit | LM4666SDBD |
Operating Supply Voltage | 3 V, 5 V |
Output Signal Type | Differential |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 65 dB |
Factory Pack Quantity | 1000 |
Subcategory | Audio ICs |
Unit Weight | 0.000917 oz |
For more information, please refer to datasheet
Documents
LM4666SD/NOPB Datasheet |
More Information
The LM4666 is a fully integrated single-supply high efficiency switching audio amplifier. It features an innovative modulator that eliminates the LC output filter used with typical switching amplifiers. Eliminating the output filter reduces parts count, simplifies circuit design, and reduces board area. The LM4666 processes analog inputs with a delta-sigma modulation technique that lowers output noise and THD when compared to conventional pulse width modulators.
