Texas Instruments
LM4755TSX/NOPB
LM4755TSX/NOPB
Regular price
$0.67 USD
Regular price
Sale price
$0.67 USD
Unit price
per
Couldn't load pickup availability

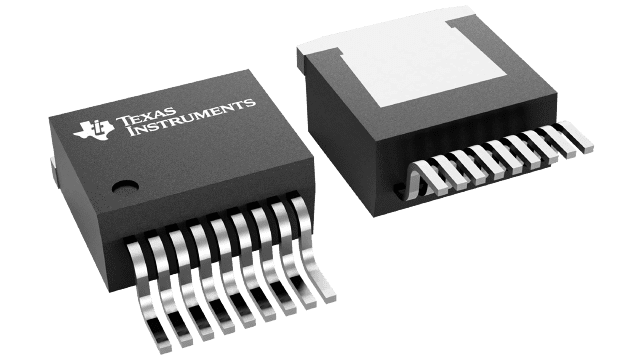

LM4755TSX/NOPB Texas Instruments - Yeehing Electronics
11-W, stereo, 9- to 40-V, analog input Class-AB audio amplifier & integrated mute function
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.925 |
| 100 — 249 | 1.687 |
| 250 — 999 | 1.183 |
| 1,000 + | 0.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4755 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 11 W |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | TO-263-9 |
| THD plus Noise | 0.08 % |
| Supply Voltage - Max | 32 V |
| Supply Voltage - Min | 9 V |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 80 C |
| Packaging | Reel |
| Input Type | Analog |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 9 V to 32 V |
| Pd - Power Dissipation | 62.5 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 50 dB |
| Factory Pack Quantity | 500 |
| Subcategory | Audio ICs |
| Unit Weight | 0.050036 oz |
For more information, please refer to datasheet
Documents
| LM4755TSX/NOPB Datasheet |
More Information
The LM4755 is a stereo audio amplifier capable of delivering 11W per channel of continuous average output power to a 4Ω load or 7W per channel into 8Ω using a single 24V supply at 10% THD+N. The internal mute circuit and pre-set gain resistors provide for a very economical design solution.
