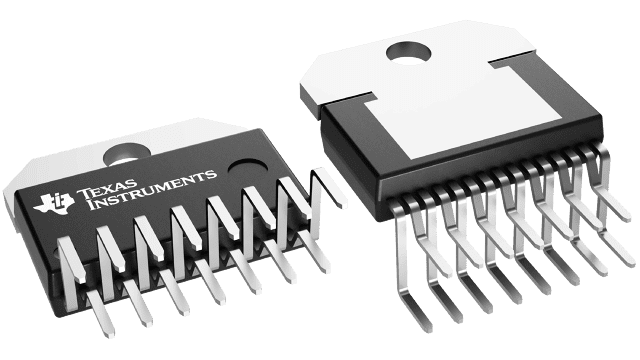

LM4766T/NOPB Texas Instruments - Yeehing Electronics
Overture Series: Dual 40W Audio Amplifier with Mute
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.845 |
100 — 249 | 3.95 |
250 — 999 | 3.104 |
1,000 + | 1.84 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | LM4766 |
Product | Audio Amplifiers |
Class | Class-AB |
Output Power | 40 W |
Mounting Style | Through Hole |
Type | 2-Channel Stereo |
Package / Case | TO-220 |
Audio - Load Impedance | 8 Ohms |
THD plus Noise | 0.06 % |
Supply Voltage - Max | 60 V |
Supply Voltage - Min | 20 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Packaging | Tube |
Description/Function | Speaker |
Height | 10.69 mm |
Input Type | Analog |
Length | 20.02 mm |
Output Type | 2-Channel Stereo |
Supply Type | Single, Dual |
Width | 4.5 mm |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
CMRR - Common Mode Rejection Ratio | 75 dB |
Dual Supply Voltage | +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
GBP - Gain Bandwidth Product | 8 MHz |
Ib - Input Bias Current | 10 nA |
Maximum Dual Supply Voltage | +/- 30 V |
Minimum Dual Supply Voltage | +/- 10 V |
Operating Supply Current | 48 mA |
Operating Supply Voltage | 18 V |
Output Signal Type | Single |
Pd - Power Dissipation | 62.5 W |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 125 dB |
Factory Pack Quantity | 20 |
Subcategory | Audio ICs |
Tradename | Overture |
Vos - Input Offset Voltage | 10 mV |
Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
LM4766T/NOPB Datasheet |
