Texas Instruments
LM48411TL/NOPB
LM48411TL/NOPB
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
per
Couldn't load pickup availability

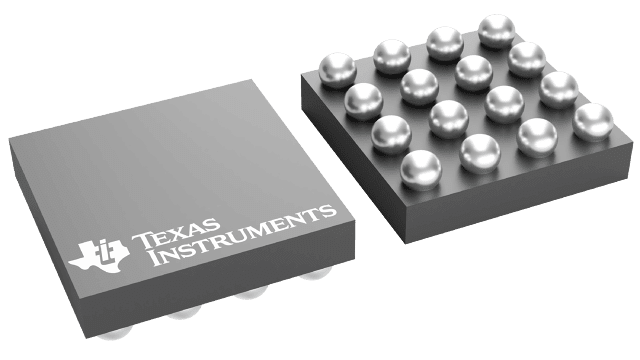

LM48411TL/NOPB Texas Instruments - Yeehing Electronics
2.5-W, stereo, analog input Class-D audio amplifier with selectable gain & EMI suppression
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.534 |
| 100 — 249 | 1.267 |
| 250 — 999 | 0.91 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM48411 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 2.5 W |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | DSBGA-16 |
| THD plus Noise | 0.05 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| CMRR - Common Mode Rejection Ratio | 64 dB |
| Development Kit | LM48411TLBD |
| Operating Supply Current | 5.2 mA |
| Operating Supply Voltage | 2.4 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 78 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Tradename | Boomer |
For more information, please refer to datasheet
Documents
| LM48411TL/NOPB Datasheet |
More Information
The LM48411 is a single supply, high efficiency, 2.5W/channel Class D audio amplifier. The LM48411 features TI's Enhanced Emissions Suppression (E2S) system, that features a unique patent-pending ultra low EMI, spread spectrum, PWM architecture, that significantly reduces RF emissions while preserving audio quality and efficiency. The E2S system improves battery life, reduces external component count, board area consumption, system cost, and simplifying design.
