LM48413TL/NOPB Texas Instruments - Yeehing Electronics
1.2-W, stereo, analog input Class-D audio amp w/selectable gain, 3D enchancement & EMI suppression
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.83 |
100 — 249 | 1.604 |
250 — 999 | 1.124 |
1,000 + | 0.63 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | LM48413 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 1.5 W |
Mounting Style | SMD/SMT |
Type | Stereo |

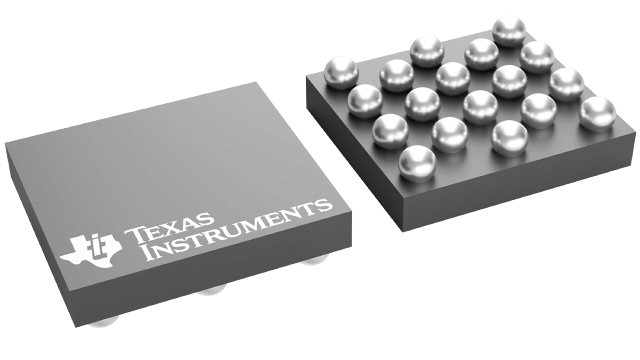

Package / Case | DSBGA-18 |
THD plus Noise | 0.03 % |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 2.4 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Supply Type | Single |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
CMRR - Common Mode Rejection Ratio | 72 dB |
Development Kit | LM48413TLBD |
Operating Supply Current | 5.2 mA |
Operating Supply Voltage | 2.4 V to 5.5 V |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 91 dB |
Factory Pack Quantity | 250 |
Subcategory | Audio ICs |
Tradename | Boomer |
For more information, please refer to datasheet
Documents
LM48413TL/NOPB Datasheet |
More Information
The LM48413 is a single supply, high efficiency, 1.2W/channel, filterless switching audio amplifier. The LM48413 features Texas Instruments' Enhanced Emissions Suppression (E2S) system - a unique patented ultra low EMI, spread spectrum, PWM architecture. It significantly reduces RF emission while preserving audio quality and efficiency. The E2S system improves battery life, reduces external component count, board area consumption, system cost and product design cycle time. The LM48413TL is available in a micro-SMD package, further saving space.
