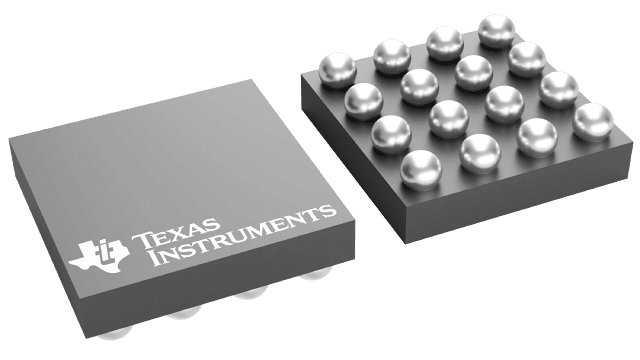

LM48512TLX/NOPB Texas Instruments - Yeehing Electronics
2.7-W, mono, analog input Class-D audio amp with integrated boost converter & EMI suppression
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.109 |
| 100 — 249 | 0.853 |
| 250 — 999 | 0.628 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM48512 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 2.7 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono |
| Package / Case | DSBGA-16 |
| Audio - Load Impedance | 4 Ohms |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Edge Rate Control, Spread Spectrum |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Operating Supply Voltage | 2.3 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 90 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Tradename | PowerWise |
For more information, please refer to datasheet
Documents
| LM48512TLX/NOPB Datasheet |
More Information
Part of National’s PowerWise family or products, the LM48512 delivers 1.8W into 8Ω, while consuming 14.5mA of quiescent current. The LM48512 also features National’s Enhanced Emissions Suppression (E
