Texas Instruments
LM4853LD/NOPB
LM4853LD/NOPB
Regular price
$0.53 USD
Regular price
Sale price
$0.53 USD
Unit price
per
Couldn't load pickup availability

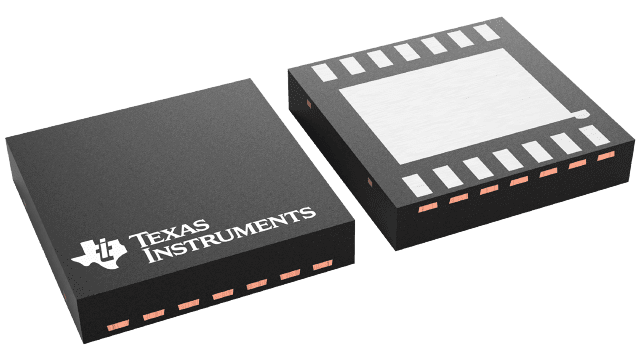

LM4853LD/NOPB Texas Instruments - Yeehing Electronics
300-mW, stereo, 1.5-W mono, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.687 |
| 100 — 249 | 1.393 |
| 250 — 999 | 1.001 |
| 1,000 + | 0.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4853 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 1.9 W |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | LLP-14 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 1 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone/Speaker |
| Height | 0.8 mm |
| Input Type | Single |
| Length | 4 mm |
| Output Type | 1-Channel Mono, 2-Channel Stereo |
| Supply Type | Single |
| Width | 4 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 7 mA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.4 mA |
| Operating Supply Voltage | 3 V, 5 V |
| Output Signal Type | Differential, Single |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| LM4853LD/NOPB Datasheet |
More Information
The LM4853 is an audio power amplifier capable of delivering 1.5W (typ) of continuous average power into a mono 4Ω bridged-tied load (BTL) with 1% THD+N or 95mW per channel of continuous average power into stereo 32Ω single-ended (SE) loads with 1% THD+N, using a 5V power supply.
