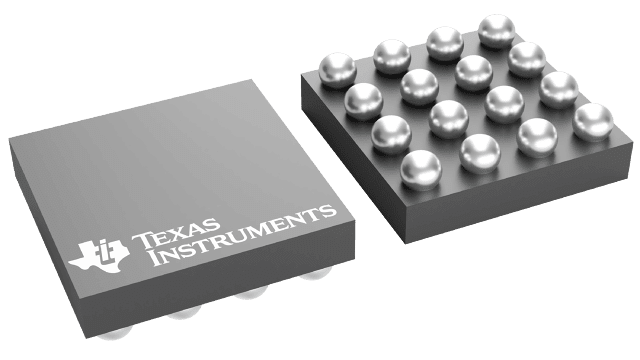

LM48560TL/NOPB Texas Instruments - Yeehing Electronics
Mono, analog input, ceramic speaker driver with I2C control and integrated 30-V Class-H boost
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.413 |
| 100 — 249 | 1.167 |
| 250 — 999 | 0.839 |
| 1,000 + | 0.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM48560 |
| Product | Audio Amplifiers |
| Class | Class-H |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Speaker |
| Package / Case | DSBGA-16 |
| THD plus Noise | 0.08 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | ALC, I2C, Ceramic/Piezo Speakers |
| Height | 0.6 mm |
| Length | 1.97 mm |
| Width | 1.97 mm |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| CMRR - Common Mode Rejection Ratio | 68 dB |
| Operating Supply Current | 4 mA |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Pd - Power Dissipation | 1 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 78 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000173 oz |
For more information, please refer to datasheet
Documents
| LM48560TL/NOPB Datasheet |
More Information
The LM48560 device is a high voltage, high efficiency, Class H driver for ceramic speakers and piezo actuators. The LM48560 devices Class H architecture offers significant power savings compared to traditional Class AB amplifiers. The device provides 30 VPP output drive while consuming just 4 mA of quiescent current from a 3.6 V supply.
