Texas Instruments

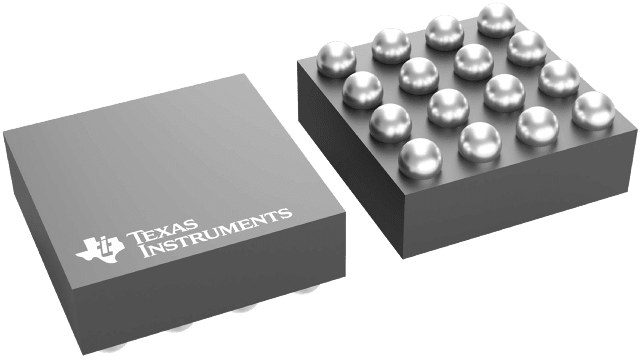

LM48824TM/NOPB
LM48824TM/NOPB
Regular price
$0.42 USD
Regular price
Sale price
$0.42 USD
Unit price
per
Couldn't load pickup availability
LM48824TM/NOPB Texas Instruments - Yeehing Electronics
37-mW, stereo, analog input headphone amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.357 |
| 100 — 249 | 1.121 |
| 250 — 999 | 0.805 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM48824 |
| Product | Headphone Amplifiers |
| Class | Class-G |
| Output Power | 37 mW |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | uSMD |
| Audio - Load Impedance | 32 Ohms |
| THD plus Noise | 0.05 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone |
| Height | 0.4 mm |
| Input Type | Differential |
| Length | 1.7 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 1.7 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 4.9 mA |
| CMRR - Common Mode Rejection Ratio | 60 dB |
| Operating Supply Current | 4.1 mA |
| Operating Supply Voltage | 3 V, 5 V |
| Output Signal Type | Single |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 100 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| LM48824TM/NOPB Datasheet |
More Information
The LM48824 is a Class G, ground-referenced stereo headphone amplifier designed for portable devices. The LM48824 features TI’s ground-referenced architecture, which eliminates the large DC blocking capacitors required by traditional headphone amplifiers, saving board space and minimizing system cost.
