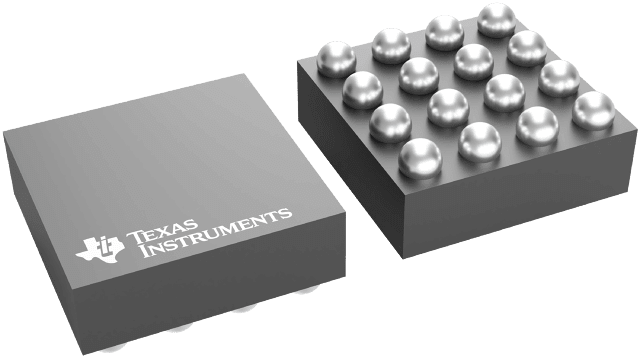

LM48824TMX/NOPB


YeeHing #: Y002-LM48824TMX/NOPB
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM48824TMX/NOPB Texas Instruments - Yeehing Electronics

37-mW, stereo, analog input headphone amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 1.131
100 — 249 0.934
250 — 999 0.671
1,000 + 0.35

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Audio Amplifiers
RoHS Y
Series LM48824
Product Headphone Amplifiers
Class Class-G
Output Power 37 mW
Mounting Style SMD/SMT
Package / Case uSMD
Audio - Load Impedance 32 Ohms
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.4 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Description/Function Headphone
Height 0.4 mm
Input Type Differential
Length 1.7 mm
Output Type 2-Channel Stereo
Supply Type Single
Width 1.7 mm
Brand Texas Instruments
Supply Current - Max 4.9 mA
CMRR - Common Mode Rejection Ratio 60 dB
Operating Supply Current 4.1 mA
Operating Supply Voltage 3 V, 5 V
Output Signal Type Single
Product Type Audio Amplifiers
PSRR - Power Supply Rejection Ratio 100 dB
Factory Pack Quantity 3000
Subcategory Audio ICs

For more information, please refer to datasheet

Documents

LM48824TMX/NOPB Datasheet

More Information

The LM48824 is a Class G, ground-referenced stereo headphone amplifier designed for portable devices. The LM48824 features TI’s ground-referenced architecture, which eliminates the large DC blocking capacitors required by traditional headphone amplifiers, saving board space and minimizing system cost.
