Texas Instruments
LM4941SDX/NOPB
LM4941SDX/NOPB
Regular price
$0.22 USD
Regular price
Sale price
$0.22 USD
Unit price
per
Couldn't load pickup availability

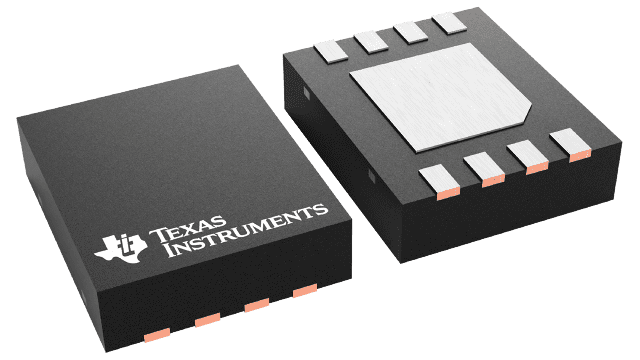

LM4941SDX/NOPB Texas Instruments - Yeehing Electronics
1.25-W, mono, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.783 |
| 100 — 249 | 0.602 |
| 250 — 999 | 0.443 |
| 1,000 + | 0.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4941 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 1.54 W |
| Mounting Style | SMD/SMT |
| Type | Audio Power Amplifier |
| Package / Case | WSON-8 |
| THD plus Noise | 0.04 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| CMRR - Common Mode Rejection Ratio | 70 dB |
| Development Kit | LM4941TMBD |
| Operating Supply Current | 1.7 mA |
| Operating Supply Voltage | 2.4 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 95 dB |
| Factory Pack Quantity | 4500 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LM4941SDX/NOPB Datasheet |
More Information
The LM4941 is a fully differential audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.25 watts of continuous average power to a 8Ω load with less than 1% distortion (THD+N) from a 5VDC power supply. The LM4941 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other small form factor applications where minimal PCB space is a primary requirement.
