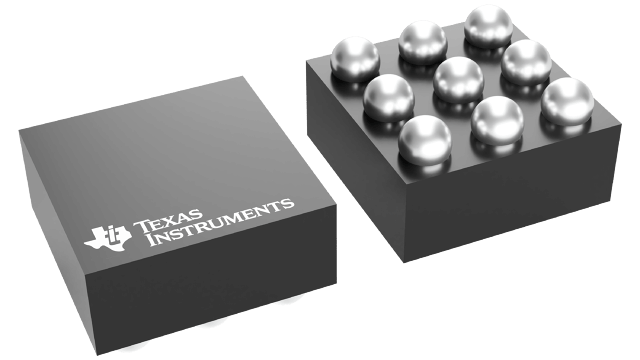

LM4941TMX/NOPB Texas Instruments - Yeehing Electronics
1.25-W, mono, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.701 |
| 100 — 249 | 0.54 |
| 250 — 999 | 0.397 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4941 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Development Kit | LM4941TMBD |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
| LM4941TMX/NOPB Datasheet |
More Information
The LM4941 is a fully differential audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.25 watts of continuous average power to a 8Ω load with less than 1% distortion (THD+N) from a 5VDC power supply. The LM4941 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other small form factor applications where minimal PCB space is a primary requirement.
