Texas Instruments

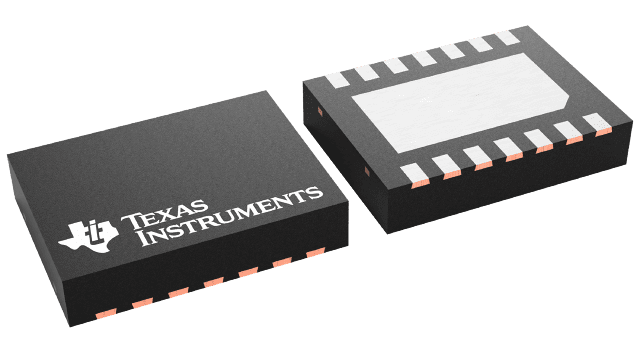

LM4992SD/NOPB
LM4992SD/NOPB
Regular price
$0.49 USD
Regular price
Sale price
$0.49 USD
Unit price
per
Couldn't load pickup availability
LM4992SD/NOPB Texas Instruments - Yeehing Electronics
1.07-W, stereo, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.384 |
| 100 — 249 | 1.143 |
| 250 — 999 | 0.821 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4992 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 1.07 W |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | WSON-14 |
| THD plus Noise | 0.15 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Development Kit | LM4992SDBD |
| Operating Supply Current | 7 mA |
| Operating Supply Voltage | 2.2 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 55 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000903 oz |
For more information, please refer to datasheet
Documents
| LM4992SD/NOPB Datasheet |
More Information
The LM4992 is a stereo audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1 watt, per channel, of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5VDC power supply.
