Description

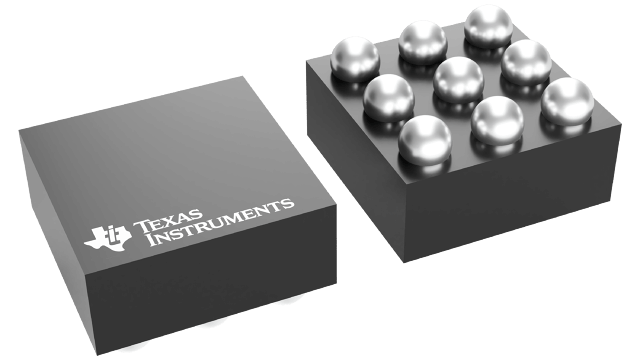

LM4995TM/NOPB Texas Instruments - Yeehing Electronics
1.3-W, stereo, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.12 |
| 100 — 249 | 0.925 |
| 250 — 999 | 0.665 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM4995 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 1.3 W |
| Mounting Style | SMD/SMT |
| Type | Audio Power Amplifier |
| Package / Case | DSBGA-9 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.08 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Operating Supply Current | 1.8 mA |
| Operating Supply Voltage | 2.4 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 73 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
| LM4995TM/NOPB Datasheet |
More Information
The LM4995 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.2W of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a 5VDC power supply.
