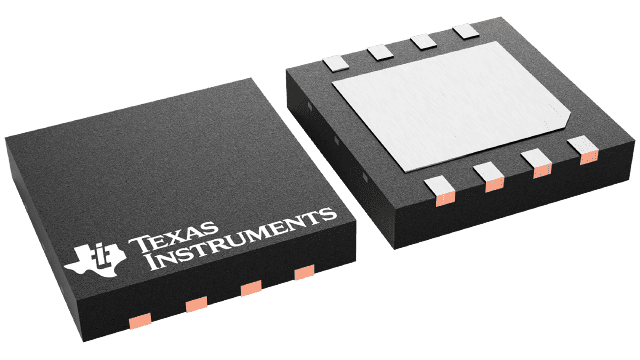

LM5001SDE/NOPB Texas Instruments - Yeehing Electronics

3.1-75V Wide Vin, 1A Current Mode Non-Synchronous Switch Mode Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	4.618
100 — 249	3.765
250 — 999	2.959
1,000 +	1.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-8
Output Voltage	1.26 V to 75 V
Output Current	1 A
Number of Outputs	1 Output
Input Voltage MAX	75 V
Topology	Boost, Flyback
Input Voltage MIN	3.1 V
Switching Frequency	50 kHz to 1500 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM5001
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Type	Inverting, Step Up
Brand	Texas Instruments
Operating Supply Current	3.1 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.1 V
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

LM5001SDE/NOPB Datasheet

More Information

The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V N-Channel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
