LM5001SDX/NOPB Texas Instruments - Yeehing Electronics
3.1-75V Wide Vin, 1A Current Mode Non-Synchronous Switch Mode Regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.379 |
100 — 249 | 2.961 |
250 — 999 | 2.076 |
1,000 + | 1.17 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 4,500 |

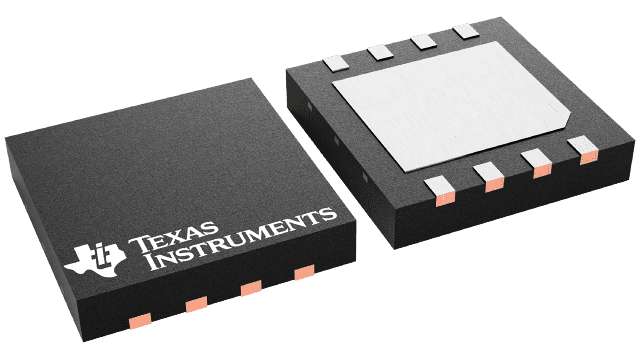

Package | Pins | WSON (NGT) | 8 |
For more information, please refer to datasheet
Documents
LM5001SDX/NOPB Datasheet |
More Information
The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V N-Channel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
