Description

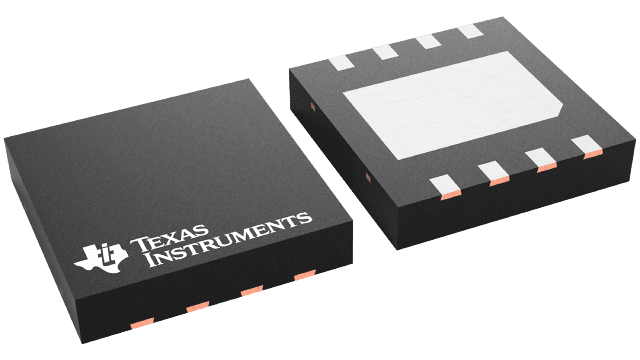

LM5008ASDX/NOPB Texas Instruments - Yeehing Electronics
6-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.347 |
| 100 — 249 | 2.057 |
| 250 — 999 | 1.442 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Output Voltage | 2.5 V to 75 V |
| Output Current | 350 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 95 V |
| Topology | Buck |
| Input Voltage MIN | 6 V |
| Switching Frequency | 50 kHz to 600 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM5008A |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Inverting, Step Down |
| Brand | Texas Instruments |
| Development Kit | LM5008AEVAL/NOPB |
| Operating Supply Current | 485 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 6 V |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LM5008ASDX/NOPB Datasheet |
More Information
The LM5008A DC/DC converter is a functional variant of the LM5008 COT Buck Switching Regulator. The functional differences of the LM5008A are: the minimum input operating voltage is 6 V, the on-time equation is slightly different, and the requirement for a minimum load current is removed.
