LM5009SDC/NOPB Texas Instruments - Yeehing Electronics

9.5-95V Wide Vin, 150mA Constant On-Time Non-Synchronous Buck Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	2.582
100 — 249	2.262
250 — 999	1.586
1,000 +	0.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

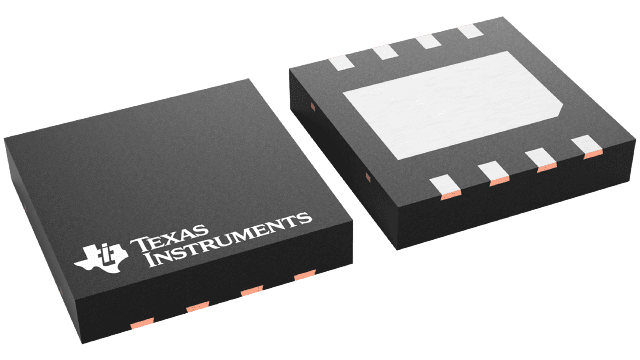

Package / Case	WSON-8
Output Voltage	2.5 V to 85 V
Output Current	150 mA
Number of Outputs	1 Output
Input Voltage MAX	95 V
Topology	Buck
Input Voltage MIN	9.5 V
Switching Frequency	600 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM5009
Packaging	Reel
Height	0.8 mm
Length	4 mm
Operating Temperature Range	- 40 C to + 125 C
Type	Step Down
Width	4 mm
Brand	Texas Instruments
Development Kit	LM5009EVAL/NOPB
Operating Supply Current	485 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	9.5 V
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

LM5009SDC/NOPB Datasheet

More Information

The LM5009 step-down switching regulator features all of the functions needed to implement a low-cost and efficient, buck regulator. This device is capable of driving a 150-mA load current from a 9.5-V to 95-V input source. The switching frequency can exceed 600 kHz, depending on the input and output voltages. The output voltage can be set from 2.5 V to 85 V. This high-voltage regulator contains an N-channel buck switch and an internal startup regulator. The device is easy to implement and is provided in 8-pin VSSOP and thermally-enhanced, 8-pin WSON packages. The regulator operation is based on a control scheme using an on-time inversely proportional to VIN. This feature allows the operating frequency to remain relatively constant over load and input voltage variations. The control scheme requires no loop compensation, resulting in an ultrafast transient response. An intelligent current limit is implemented with forced off-time that is inversely proportional to VOUT. This scheme ensures short-circuit protection and provides minimum foldback. Other features include thermal shutdown, VCC undervoltage lockout, gate drive undervoltage lockout, and maximum duty cycle limiter.
