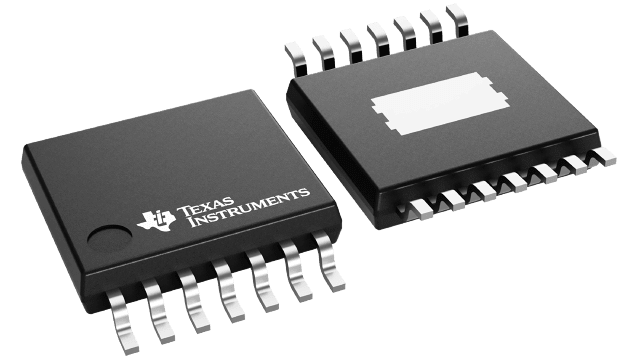

LM5015MHE/NOPB


YeeHing #: Y012-LM5015MHE/NOPB
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5015MHE/NOPB Texas Instruments - Yeehing Electronics

4.25-75V, Monolithic Two-Switch Forward DC-DC Regulator

Pricing (USD)

Quantity Unit Price
1 — 99 4.497
100 — 249 3.666
250 — 999 2.881
1,000 + 1.96

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case HTSSOP-14
Output Voltage 1.26 V to 37 V
Output Current 1.2 A
Number of Outputs 1 Output
Input Voltage MAX 75 V
Topology Flyback
Input Voltage MIN 4.75 V
Switching Frequency 25 kHz to 750 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM5015
Packaging Reel
Input Voltage 4.25 V to 75 V
Operating Temperature Range - 40 C to + 125 C
Type Inverting, Step Up
Brand Texas Instruments
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.006737 oz

For more information, please refer to datasheet

Documents

LM5015MHE/NOPB Datasheet

More Information

The LM5015 high voltage switch mode regulator features all the functions necessary to implement efficient high voltage Two-Switch Forward and Two-Switch Flyback regulators, using a minimum of external components. This easy to use regulator integrates high side and low side 75 Volt N-Channel MOSFETs with a minimum 1 Amp peak current limit. The voltage across the MOSFETs employed in the two-switch topology is clamped to the input voltage, allowing the input voltage range to approach the rating of the MOSFETs. The regulator control method is based on current mode control providing inherent ease of loop compensation and line feed-forward for superior rejection of input transients.
