Texas Instruments
LM5017SD/NOPB
LM5017SD/NOPB
Regular price
$1.71 USD
Regular price
Sale price
$1.71 USD
Unit price
per
Couldn't load pickup availability

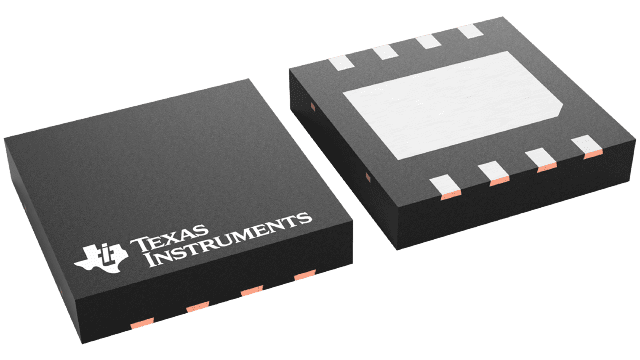

LM5017SD/NOPB Texas Instruments - Yeehing Electronics
7.5-100V Wide Vin, 600mA Constant On-Time Synchronous Buck Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.173 |
| 100 — 249 | 2.781 |
| 250 — 999 | 1.95 |
| 1,000 + | 1.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 1,000 |
| Package | Pins | WSON (NGU) | 8 |
For more information, please refer to datasheet
Documents
| LM5017SD/NOPB Datasheet |
More Information
The LM5017 is a 100-V, 600-mA synchronous stepdown regulator with integrated high side and low side MOSFETs. The constant on-time (COT) control scheme employed in the LM5017 requires no loop compensation, provides excellent transient response, and enables very high step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
