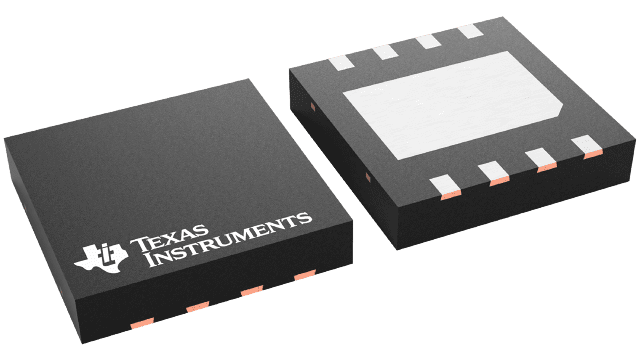

LM5018SD/NOPB Texas Instruments - Yeehing Electronics

7.5-100V Wide Vin, 300mA Constant On-Time Synchronous Buck Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	2.881
100 — 249	2.524
250 — 999	1.77
1,000 +	1.00

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-8
Output Voltage	10 V
Output Current	300 mA
Input Voltage MAX	95 V
Topology	Buck
Switching Frequency	400 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM5018
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Development Kit	LM5018EVAL/NOPB
Operating Supply Current	1.75 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

LM5018SD/NOPB Datasheet

More Information

The LM5018 is a 100-V, 300-mA synchronous step-down regulator with integrated high-side and low-side MOSFETs. The constant-on-time (COT) control scheme employed in the LM5018 device requires no loop compensation, provides excellent transient response, and enables very low step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high-voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
