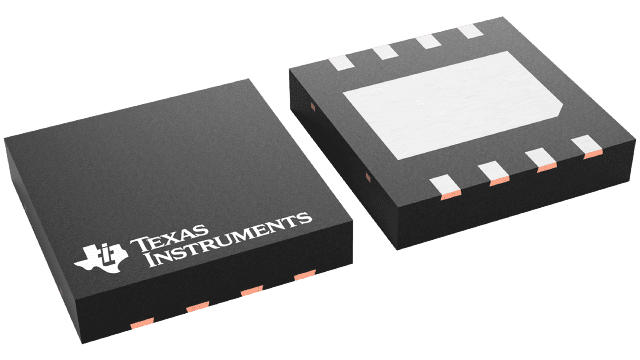

LM5018SDX/NOPB Texas Instruments - Yeehing Electronics
7.5-100V Wide Vin, 300mA Constant On-Time Synchronous Buck Regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.4 |
100 — 249 | 2.103 |
250 — 999 | 1.474 |
1,000 + | 0.83 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LM5018SDX/NOPB Datasheet |
More Information
The LM5018 is a 100-V, 300-mA synchronous step-down regulator with integrated high-side and low-side MOSFETs. The constant-on-time (COT) control scheme employed in the LM5018 device requires no loop compensation, provides excellent transient response, and enables very low step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high-voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
