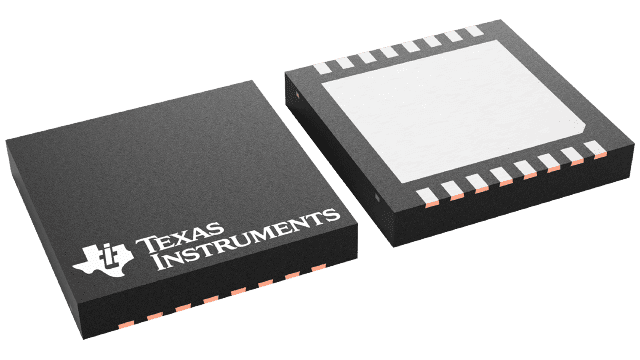

LM5025ASDX/NOPB Texas Instruments - Yeehing Electronics

90V active clamp voltage mode PWM controller with P or N-channel clamp FET and 0.5V CS threshold

Pricing (USD)

Quantity	Unit Price
1 — 99	2.236
100 — 249	1.846
250 — 999	1.326
1,000 +	0.70

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM5025ASDX/NOPB Datasheet

More Information

The LM5025A is a functional variant of the LM5025 active clamp PWM controller. The functional differences of the LM5025A are that the CS1 and CS2 current limit thresholds have been increased to 0.5 V, the internal CS2 filter discharge device has been disabled and no longer operates each clock cycle, and the internal VCC and VREF regulators continue to operate when the line UVLO pin is below threshold.
