Texas Instruments
LM5025BSD/NOPB
LM5025BSD/NOPB
Regular price
$0.82 USD
Regular price
Sale price
$0.82 USD
Unit price
per
Couldn't load pickup availability

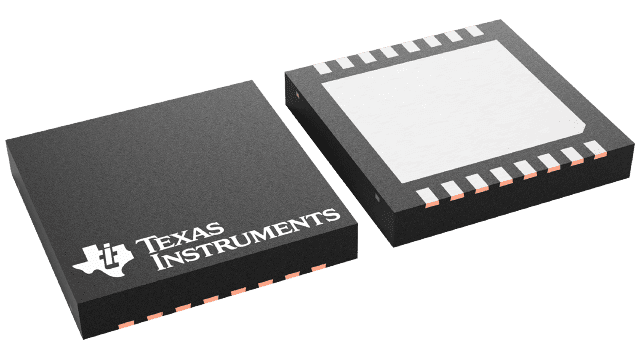

LM5025BSD/NOPB Texas Instruments - Yeehing Electronics
90V active clamp voltage mode PWM controller with P or N-channel clamp FET and 75% max duty cycle
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.363 |
| 100 — 249 | 2.071 |
| 250 — 999 | 1.452 |
| 1,000 + | 0.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Active Clamp |
| Number of Outputs | 2 Output |
| Switching Frequency | 440 kHz |
| Duty Cycle - Max | 75 % |
| Input Voltage | 105 V |
| Output Voltage | 8 V to 15 V |
| Output Current | 3 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | LLP-16 |
| Packaging | Reel |
| Description/Function | Features necessary to implement power converters utilizing the Active Clam / Reset technique |
| Height | 0.8 mm |
| Isolation | Non-Isolated |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Programmable |
| Product | Active Clamp PWM Controllers |
| Series | LM5025B |
| Type | Voltage Mode PWM Controller |
| Width | 5 mm |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Fall Time | 15 ns |
| Operating Supply Current | 4.2 mA |
| Operating Supply Voltage | 13 V to 100 V |
| Product Type | Switching Controllers |
| Rise Time | 20 ns |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM5025BSD/NOPB Datasheet |
More Information
The LM5025B is a functional variant of the LM5025 active clamp PWM controller. The functional differences of the LM5025B are as follows:
