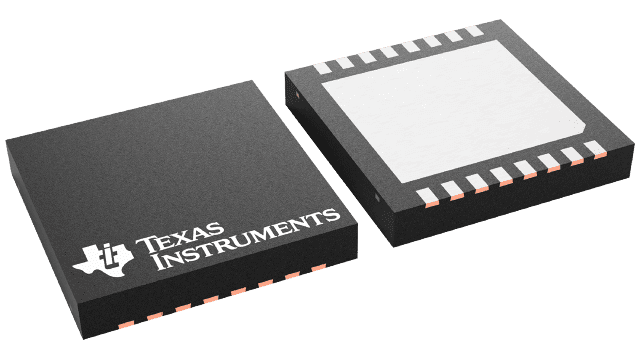

LM5026SD/NOPB


YeeHing #: Y012-LM5026SD/NOPB
Inventory: 8600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5026SD/NOPB Texas Instruments - Yeehing Electronics

100-V active clamp current mode PWM controller with P or N-channel clamp FET and CS restart timer

Pricing (USD)

Quantity Unit Price
1 — 99 2.8
100 — 249 2.453
250 — 999 1.72
1,000 + 0.97

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Controllers
RoHS Y
Topology Active Clamp
Number of Outputs 2 Output
Switching Frequency 590 kHz
Duty Cycle - Max 80 %
Input Voltage 100 V
Output Voltage 8 V to 15 V
Output Current 3 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case LLP-16
Packaging Reel
Description/Function Features necessary to implement power converters utilizing the Active Clam / Reset technique
Isolation Non-Isolated
Operating Temperature Range - 40 C to + 125 C
Output Type Programmable
Product Active Clamp PWM Controllers
Series LM5026
Type Current Mode PWM Controller
Brand Texas Instruments
Shutdown Shutdown
Development Kit LM5026EVAL/NOPB
Fall Time 15 ns
Operating Supply Current 4.2 mA
Operating Supply Voltage 13 V to 100 V
Product Type Switching Controllers
Rise Time 20 ns
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.002215 oz

For more information, please refer to datasheet

Documents

LM5026SD/NOPB Datasheet

More Information

The LM5026 PWM controller contains all of the features necessary to implement power converters utilizing the active clamp and reset technique with current-mode control. With the active clamp technique, higher efficiencies and greater power densities can be realized compared to conventional catch winding or RDC clamp and reset techniques. Two control outputs are provided, the main power switch control (OUT_A) and the active clamp switch control (OUT_B). The device can be configured to control either a P-Channel or N-Channel clamp switch. The main gate driver features a compound configuration, consisting of both MOS and Bipolar devices, providing superior gate drive characteristics. The LM5026 can be configured to operate with bias voltages over a wide input range of 8 V to 100 V. Additional features include programmable maximum duty cycle, line undervoltage lockout, cycle-by-cycle current limit, hiccup mode fault operation with adjustable timeout delay, PWM slope compensation, soft-start, 1-MHz capable oscillator with synchronization input and output capability, precision reference, and thermal shutdown.
