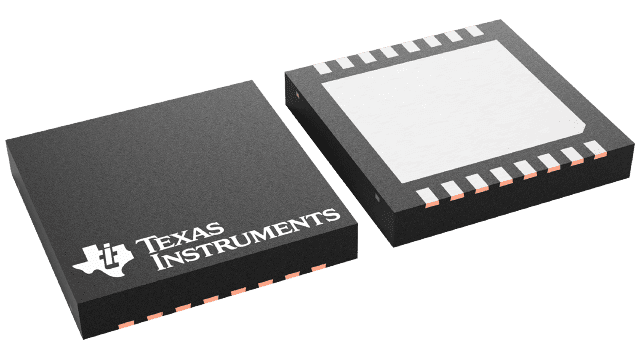

LM5026SDX/NOPB Texas Instruments - Yeehing Electronics
100-V active clamp current mode PWM controller with P or N-channel clamp FET and CS restart timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.333 |
| 100 — 249 | 2.044 |
| 250 — 999 | 1.433 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 2 Output |
| Switching Frequency | 590 kHz |
| Duty Cycle - Max | 80 % |
| Output Current | 3 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | LLP-16 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM5026 |
| Type | Current Mode PWM Controllers |
| Brand | Texas Instruments |
| Development Kit | LM5026EVAL/NOPB |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM5026SDX/NOPB Datasheet |
More Information
The LM5026 PWM controller contains all of the features necessary to implement power converters utilizing the active clamp and reset technique with current-mode control. With the active clamp technique, higher efficiencies and greater power densities can be realized compared to conventional catch winding or RDC clamp and reset techniques. Two control outputs are provided, the main power switch control (OUT_A) and the active clamp switch control (OUT_B). The device can be configured to control either a P-Channel or N-Channel clamp switch. The main gate driver features a compound configuration, consisting of both MOS and Bipolar devices, providing superior gate drive characteristics. The LM5026 can be configured to operate with bias voltages over a wide input range of 8 V to 100 V. Additional features include programmable maximum duty cycle, line undervoltage lockout, cycle-by-cycle current limit, hiccup mode fault operation with adjustable timeout delay, PWM slope compensation, soft-start, 1-MHz capable oscillator with synchronization input and output capability, precision reference, and thermal shutdown.
