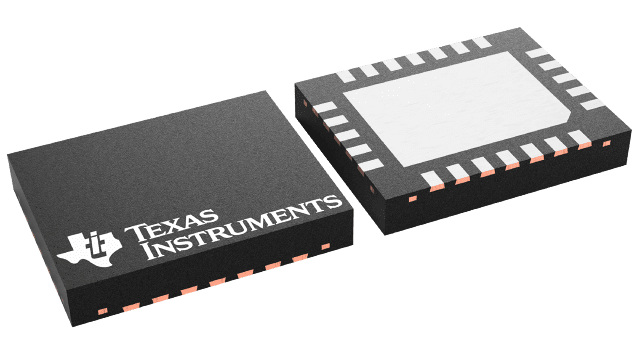

LM5035BSQ/NOPB Texas Instruments - Yeehing Electronics

PWM controller with Integrated half-bridge and SyncFET Drivers with Increased max duty cycle

Pricing (USD)

Quantity	Unit Price
1 — 99	3.808
100 — 249	3.336
250 — 999	2.339
1,000 +	1.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	1 Output
Switching Frequency	50 kHz to 1000 kHz
Duty Cycle - Max	0 %
Input Voltage	105 V
Output Voltage	8 V to 15 V
Output Current	2 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	LLP-24
Packaging	Reel
Description/Function	Implement half-bridge topology power converters using voltage mode control with line voltage feed-forward
Height	0.8 mm
Isolation	Isolated
Length	5 mm
Operating Temperature Range	- 40 C to + 125 C
Output Type	Programmable
Product	Half-Bridge PWM Controllers
Series	LM5035B
Type	Voltage Mode PWM Controller
Width	4 mm
Brand	Texas Instruments
Shutdown	Shutdown
Fall Time	13 ns
Operating Supply Current	4 mA
Operating Supply Voltage	7.6 V
Product Type	Switching Controllers
Rise Time	15 ns
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001827 oz

For more information, please refer to datasheet

Documents

LM5035BSQ/NOPB Datasheet

More Information

The LM5035B Half-Bridge Controller/Gate Driver contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feed-forward.
