Texas Instruments
LM5035BSQX/NOPB
LM5035BSQX/NOPB
Regular price
$0.90 USD
Regular price
Sale price
$0.90 USD
Unit price
per
Couldn't load pickup availability

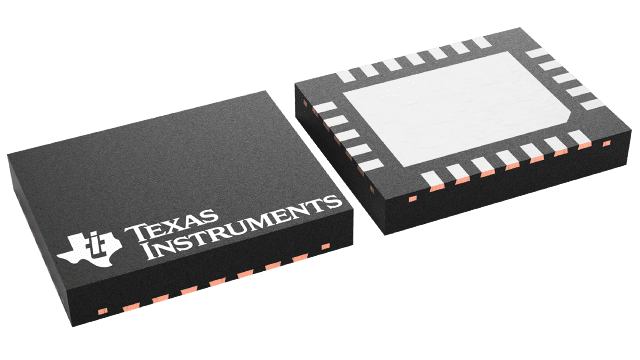

LM5035BSQX/NOPB Texas Instruments - Yeehing Electronics
PWM controller with Integrated half-bridge and SyncFET Drivers with Increased max duty cycle
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.173 |
| 100 — 249 | 2.781 |
| 250 — 999 | 1.95 |
| 1,000 + | 0.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 1 Output |
| Switching Frequency | 50 kHz to 1000 kHz |
| Duty Cycle - Max | 0 % |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | LLP-24 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM5035B |
| Type | Voltage Mode PWM Controllers |
| Width | 4 mm |
| Brand | Texas Instruments |
| Operating Supply Voltage | 7.6 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM5035BSQX/NOPB Datasheet |
More Information
The LM5035B Half-Bridge Controller/Gate Driver contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feed-forward.
