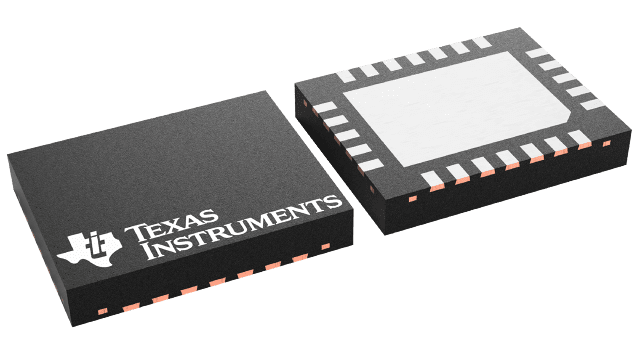

LM5035CSQ/NOPB Texas Instruments - Yeehing Electronics
PWM controller with Integrated half-bridge and 5V SyncFET Drive output with Increased max duty cycle
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.808 |
| 100 — 249 | 3.336 |
| 250 — 999 | 2.339 |
| 1,000 + | 1.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Half-Bridge |
| Number of Outputs | 1 Output |
| Switching Frequency | 50 kHz to 1000 kHz |
| Duty Cycle - Max | 0 % |
| Input Voltage | 105 V |
| Output Voltage | 8 V to 15 V |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | LLP-24 |
| Packaging | Reel |
| Description/Function | Implement half-bridge topology power converters using voltage mode control with line voltage feed-forward |
| Height | 0.8 mm |
| Isolation | Isolated |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Programmable |
| Product | Half-Bridge PWM Controllers |
| Series | LM5035C |
| Type | Voltage Mode PWM Controller |
| Width | 4 mm |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Fall Time | 13 ns |
| Operating Supply Current | 4 mA |
| Operating Supply Voltage | 13 V to 105 V |
| Product Type | Switching Controllers |
| Rise Time | 15 ns |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001827 oz |
For more information, please refer to datasheet
Documents
| LM5035CSQ/NOPB Datasheet |
More Information
The LM5035C half-bridge controller and gate driver contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feedforward.
