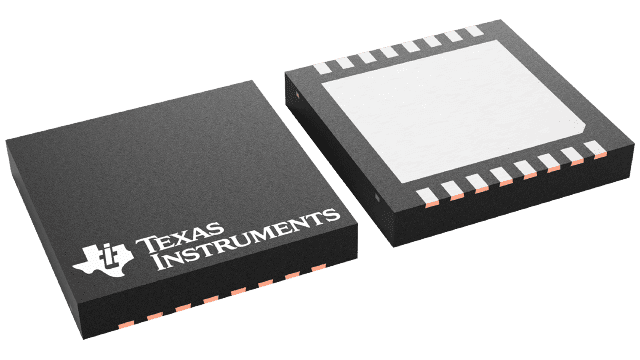

LM5041ASD/NOPB Texas Instruments - Yeehing Electronics

Cascaded PWM controller with buck Stage disable options

Pricing (USD)

Quantity	Unit Price
1 — 99	2.426
100 — 249	2.126
250 — 999	1.49
1,000 +	0.84

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Push-Pull
Number of Outputs	1 Output
Switching Frequency	600 kHz
Duty Cycle - Max	50 %
Output Current	1.5 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Package / Case	LLP-16
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	LM5041A
Type	Current Mode PWM Controllers
Brand	Texas Instruments
Product Type	Switching Controllers
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002212 oz

For more information, please refer to datasheet

Documents

LM5041ASD/NOPB Datasheet

More Information

The LM5041A PWM controller contains all of the features necessary to implement either current-fed or voltage-fed push-pull or bridge power converters. These “Cascaded” topologies are well suited for multiple output and higher power applications. The LM5041A’s four control outputs include: the buck stage controls (HD and LD) and the push-pull control outputs (PUSH and PULL). Push-pull outputs are driven at 50% nominal duty cycle at one half of the switching frequency of the buck stage and can be configured for either an overlap time (for current-fed applications) or a both-off time (for voltage-fed applications). Push-pull stage MOSFETs can be driven directly from the internal gate drivers while the buck stage requires an external driver such as the LM5102. The LM5041A includes a high-voltage start-up regulator that operates over a wide input range of 15V to 100V. The PWM controller is designed for high-speed capability including an oscillator frequency range up to 1 MHz and total propagation delays of less than 100ns. Additional features include: line Under-Voltage Lockout (UVLO), soft-start, an error amplifier, precision voltage reference, and thermal shutdown.
