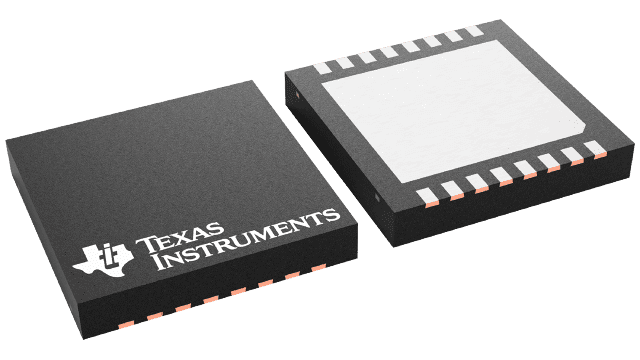

LM5041SD/NOPB


YeeHing #: Y012-LM5041SD/NOPB
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5041SD/NOPB Texas Instruments - Yeehing Electronics

Cascaded PWM controller with Hiccup mode

Pricing (USD)

Quantity Unit Price
1 — 99 2.911
100 — 249 2.551
250 — 999 1.788
1,000 + 1.01

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Controllers
RoHS Y
Topology Push-Pull
Number of Outputs 1 Output
Switching Frequency 600 kHz
Duty Cycle - Max 50 %
Input Voltage 100 V
Output Voltage 16 V
Output Current 1.5 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case LLP-16
Packaging Reel
Description/Function Implement either current-fed or voltage-fed push-pull or bridge power cnverters
Isolation Non-Isolated
Operating Temperature Range - 40 C to + 125 C
Output Type Programmable
Product Cascaded PWM Controllers
Series LM5041
Type Current Mode PWM Controller
Brand Texas Instruments
Shutdown Shutdown
Development Kit LM5041EVAL/NOPB
Fall Time 10 ns
Operating Supply Current 3 mA
Operating Supply Voltage 9 V
Product Type Switching Controllers
Rise Time 10 ns
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM5041SD/NOPB Datasheet

More Information

The LM5041 PWM controller contains all of the features necessary to implement either current-fed or voltage-fed push-pull or bridge power converters. These “Cascaded” topologies are well suited for multiple output and higher power applications. The LM5041’s four control outputs include: the buck stage controls (HD and LD) and the push-pull control outputs (PUSH and PULL). Push-pull outputs are driven at 50% nominal duty cycle at one half of the switching frequency of the buck stage and can be configured for either a specified overlap time (for current-fed applications) or a specified both-off time (for voltage-fed applications). Push-pull stage MOSFETs can be driven directly from the internal gate drivers while the buck stage requires an external driver such as the LM5102. The LM5041 includes a high-voltage start-up regulator that operates over a wide input range of 15V to 100V. The PWM controller is designed for high-speed capability including an oscillator frequency range up to 1 MHz and total propagation delays of less than 100ns. Additional features include: line Under-Voltage Lockout (UVLO), soft-start, an error amplifier, precision voltage reference, and thermal shutdown.
