Texas Instruments

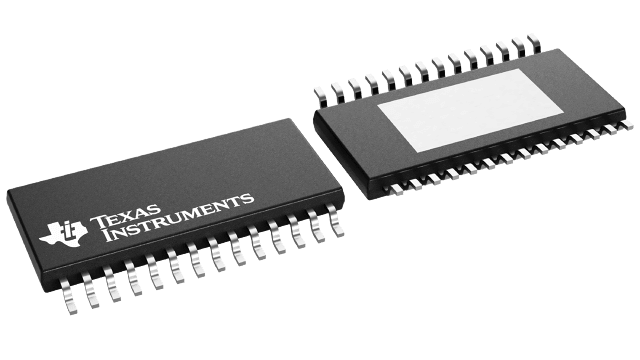

LM5045MHX/NOPB
LM5045MHX/NOPB
Couldn't load pickup availability
LM5045MHX/NOPB Texas Instruments - Yeehing Electronics
Full-bridge PWM controller with Integrated MOSFET Drivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.4 |
| 100 — 249 | 2.772 |
| 250 — 999 | 2.179 |
| 1,000 + | 0.04 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 1 Output |
| Switching Frequency | 100 kHz to 2000 kHz |
| Output Voltage | 0.4 V to 1.25 V |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM5045 |
| Type | Current Mode PWM Controllers |
| Brand | Texas Instruments |
| Development Kit | LM5045EVAL/NOPB |
| Fall Time | 20 ns |
| Operating Supply Current | 4.6 mA |
| Operating Supply Voltage | 14 V to 100 V |
| Product Type | Switching Controllers |
| Rise Time | 60 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
| LM5045MHX/NOPB Datasheet |
More Information
The LM5045 PWM controller contains all of the features necessary to implement full-bridge topology power converters using either current mode or voltage mode control. This device is intended to operate on the primary side of an isolated DC-DC converter with input voltage up to 100 V. This highly integrated controller-driver provides dual 2-A high-side and low-side gate drivers for the four external bridge MOSFETs plus control signals for the secondary-side synchronous rectifier MOSFETs. External resistors program the leading and trailing edge dead-time between the main and synchronous rectifier control signals. Intelligent start-up of the synchronous rectifiers allows monotonic turnon of the power converter even with prebias load conditions. Additional features include cycle-by-cycle current limiting, hiccup mode restart, programmable soft-start, synchronous rectifier soft-start, and a 2-MHz capable oscillator with synchronization capability and thermal shutdown.
