LM5046MHX/NOPB Texas Instruments - Yeehing Electronics

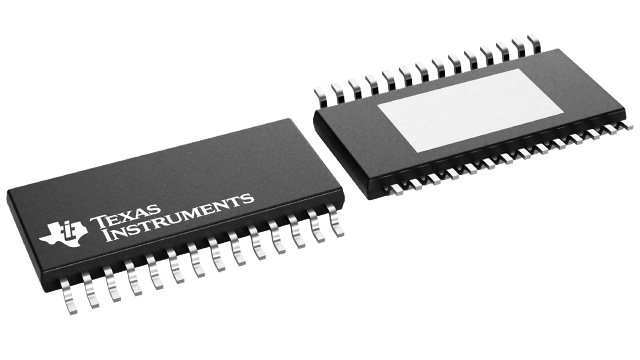

Phase-shifted full-bridge PWM controller with integrated MOSFET drivers

Pricing (USD)

Quantity	Unit Price
1 — 99	3.643
100 — 249	2.97
250 — 999	2.334
1,000 +	1.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Full-Bridge
Number of Outputs	2 Output
Switching Frequency	100 kHz to 2000 kHz
Duty Cycle - Max	0 %
Output Current	2 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-28
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	LM5046
Type	Current Mode PWM Controllers
Brand	Texas Instruments
Development Kit	LM5046EVAL/NOPB
Product Type	Switching Controllers
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004233 oz

For more information, please refer to datasheet

Documents

LM5046MHX/NOPB Datasheet

More Information

The LM5046 PWM controller contains all of the features necessary to implement a phase-shifted full-bridge topology power converter using either current mode or voltage mode control. This device is intended to operate on the primary side of an isolated DC-DC converter with input voltage up to 100 V. This highly integrated controller-driver provides dual 2-A high- and low-side gate drivers for the four external bridge MOSFETs, plus control signals for the secondary-side synchronous rectifier MOSFETs. External resistors program the dead-time to enable zero-volt switching of the primary FETs. Intelligent startup of the synchronous rectifiers allows monotonic turnon of the power converter even with prebias load conditions. Additional features include cycle-by-cycle current limiting, hiccup mode restart, programmable soft-start, synchronous rectifier soft-start, and a 2-MHz capable oscillator with synchronization capability and thermal shutdown.
