Texas Instruments
LM5046SQX/NOPB
LM5046SQX/NOPB
Couldn't load pickup availability
LM5046SQX/NOPB Texas Instruments - Yeehing Electronics
Phase-shifted full-bridge PWM controller with integrated MOSFET drivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.643 |
| 100 — 249 | 2.97 |
| 250 — 999 | 2.334 |
| 1,000 + | 1.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Full-Bridge |
| Switching Frequency | 100 kHz to 2000 kHz |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |

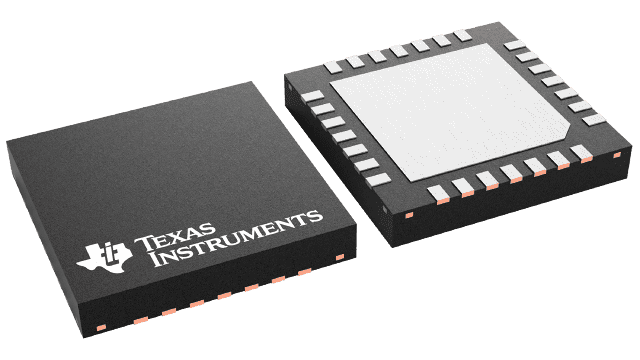

| Package / Case | WQFN-28 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM5046 |
| Brand | Texas Instruments |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LM5046SQX/NOPB Datasheet |
More Information
The LM5046 PWM controller contains all of the features necessary to implement a phase-shifted full-bridge topology power converter using either current mode or voltage mode control. This device is intended to operate on the primary side of an isolated DC-DC converter with input voltage up to 100 V. This highly integrated controller-driver provides dual 2-A high- and low-side gate drivers for the four external bridge MOSFETs, plus control signals for the secondary-side synchronous rectifier MOSFETs. External resistors program the dead-time to enable zero-volt switching of the primary FETs. Intelligent startup of the synchronous rectifiers allows monotonic turnon of the power converter even with prebias load conditions. Additional features include cycle-by-cycle current limiting, hiccup mode restart, programmable soft-start, synchronous rectifier soft-start, and a 2-MHz capable oscillator with synchronization capability and thermal shutdown.
