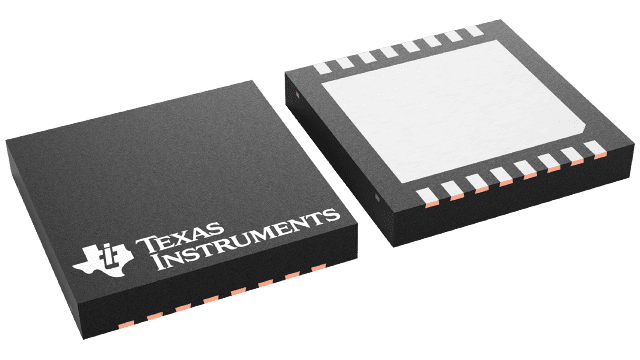

LM5070SD-50/NOPB Texas Instruments - Yeehing Electronics

Class 3 PoE PD with flyback DC-DC controller with adjustable UVLO

Pricing (USD)

Quantity	Unit Price
1 — 99	2.287
100 — 249	2.004
250 — 999	1.405
1,000 +	0.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - POE / LAN
RoHS	Y
Type	Powered Device - PD
Standard	802.3af
Current Limit	300 mA
On Resistance - Max	2.2 Ohms
Operating Supply Voltage	1.8 V to 75 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WSON-16
Packaging	Reel
Output Power	12.95 W
Series	LM5070
Brand	Texas Instruments
Duty Cycle - Max	80 %
Development Kit	LM5070AEEVAL
Operating Supply Current	1 mA
Product Type	Power Switch ICs - POE / LAN
Factory Pack Quantity	1000
Subcategory	Switch ICs
Unit Weight	0.002205 oz

For more information, please refer to datasheet

Documents

LM5070SD-50/NOPB Datasheet

More Information

The LM5070 power interface port and pulse width modulation (PWM) controller provides a complete integrated solution for Powered Devices (PD) that connect into Power over Ethernet (PoE) systems. The LM5070 integrates an 80V, 400mA line connection switch and associated control for a fully IEEE 802.3af compliant interface with a full featured current mode pulse width modulator dc-dc converter. All power sequencing requirements between the controller interface and switch mode power supply (SMPS) are integrated into the IC. Two options are available providing either an 80% maximum duty cycle limit with slope compensation (on the –80 suffix) device or a 50% maximum duty cycle limit and no slope compensation on the (–50 suffix) device.
