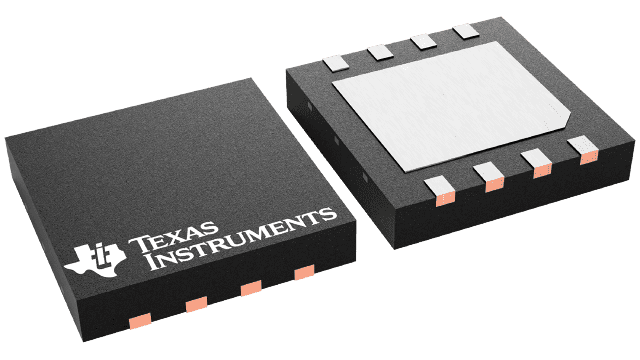

LM5101ASD-1/NOPB Texas Instruments - Yeehing Electronics
3-A, 100-V half bridge gate driver with 8-V UVLO and TTL inputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.2 |
100 — 249 | 2.804 |
250 — 999 | 1.966 |
1,000 + | 1.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-8 |
Output Current | 3 A |
Configuration | Dual |
Rise Time | 10 ns |
Fall Time | 10 ns |
Supply Voltage - Min | 7.5 V |
Supply Voltage - Max | 14 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LM5101A |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Technology | Si |
Brand | Texas Instruments |
Logic Type | TTL |
Operating Supply Voltage | 7.5 V to 14 V |
Product Type | Gate Drivers |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
LM5101ASD-1/NOPB Datasheet |
More Information
The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The floating high-side driver is capable of operating with supply voltages up to 100 V. The A versions provide a full 3-A of gate drive, while the B and C versions provide 2 A and 1 A, respectively. The outputs are independently controlled with CMOS input thresholds (LM5100A/B/C) or TTL input thresholds (LM5101A/B/C).
