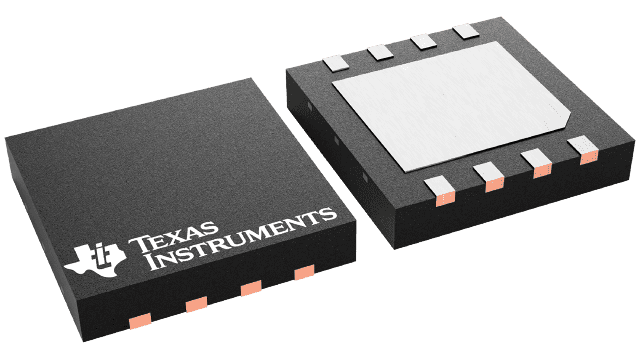

LM5101ASDX-1/NOPB


YeeHing #: Y012-LM5101ASDX-1/NOPB
Inventory: 5600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5101ASDX-1/NOPB Texas Instruments - Yeehing Electronics

3-A, 100-V half bridge gate driver with 8-V UVLO and TTL inputs

Pricing (USD)

Quantity Unit Price
1 — 99 2.666
100 — 249 2.336
250 — 999 1.638
1,000 + 0.92

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-8
Output Current 3 A
Configuration Dual
Rise Time 10 ns
Fall Time 10 ns
Supply Voltage - Min 7.5 V
Supply Voltage - Max 14 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM5101A
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Technology Si
Brand Texas Instruments
Logic Type TTL
Operating Supply Voltage 7.5 V to 14 V
Product Type Gate Drivers
Factory Pack Quantity 4500
Subcategory PMIC - Power Management ICs
Unit Weight 0.000384 oz

For more information, please refer to datasheet

Documents

LM5101ASDX-1/NOPB Datasheet

More Information

The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The floating high-side driver is capable of operating with supply voltages up to 100 V. The A versions provide a full 3-A of gate drive, while the B and C versions provide 2 A and 1 A, respectively. The outputs are independently controlled with CMOS input thresholds (LM5100A/B/C) or TTL input thresholds (LM5101A/B/C).
