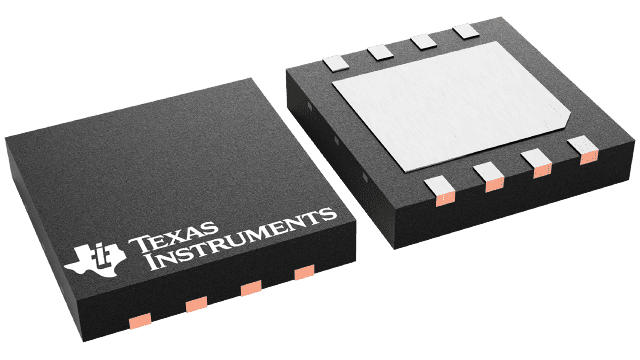

LM5109ASD/NOPB


YeeHing #: Y012-LM5109ASD/NOPB
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5109ASD/NOPB Texas Instruments - Yeehing Electronics

1-A, 100-V half bridge gate driver with 8-V UVLO

Pricing (USD)

Quantity Unit Price
1 — 99 1.36
100 — 249 1.123
250 — 999 0.807
1,000 + 0.42

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case LLP-8
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 1 A
Rise Time 15 ns
Fall Time 15 ns
Supply Voltage - Min 8 V
Supply Voltage - Max 14 V
Propagation Delay - Max 32 ns
Operating Supply Current 1.8 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM5109A
Packaging Reel
Features Independent
Height 0.8 mm
Length 4 mm
Operating Temperature Range - 40 C to + 125 C
Technology Si
Width 4 mm
Brand Texas Instruments
Logic Type TTL
Maximum Turn-Off Delay Time 2 ns
Maximum Turn-On Delay Time 2 ns
Operating Supply Voltage 7.5 V to 14 V
Product Type Gate Drivers
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.001743 oz

For more information, please refer to datasheet

Documents

LM5109ASD/NOPB Datasheet

More Information

The LM5109A is a cost effective, high voltage gate driver designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half bridge configuration. The floating high-side driver is capable of working with rail voltages up to 90V. The outputs are independently controlled with TTL compatible input thresholds. The robust level shift technology operates at high speed while consuming low power and providing clean level transitions from the control input logic to the high-side gate driver. Under-voltage lockout is provided on both the low-side and the high-side power rails. The device is available in the SOIC and the thermally enhanced WSON packages.
