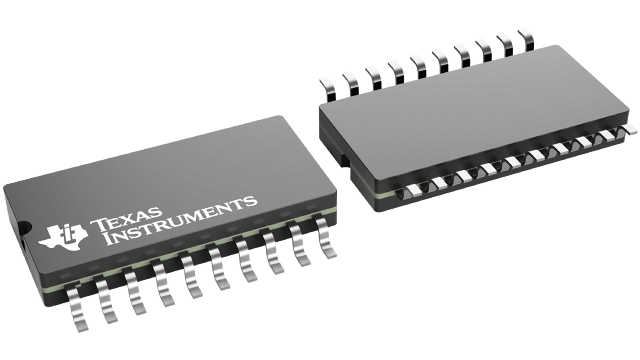

LM5116WG/NOPB Texas Instruments - Yeehing Electronics
100V Wide Vin Synchronous Buck Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 290.0 |
| 100 — 249 | 262.5 |
| 250 — 999 | 255.0 |
| 1,000 + | 175.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 1 Output |
| Switching Frequency | 200 kHz, 535 kHz |
| Duty Cycle - Max | 98 % |
| Input Voltage | 6 V to 100 V |
| Output Voltage | 1.215 V to 80 V |
| Output Current | 3.5 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | CPAK-20 |
| Packaging | Tray |
| Isolation | Non-Isolated |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM5116WG |
| Type | Synchronous Buck Controller/PWM DC to DC Controller |
| Brand | Texas Instruments |
| Operating Supply Current | 4.6 mA |
| Operating Supply Voltage | 6 V to 100 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 30 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM5116WG/NOPB Datasheet |
More Information
The LM5116WG is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply. The control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line feed-forward, cycle by cycle current limiting and ease of loop compensation. The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles necessary in high input voltage applications. The operating frequency is programmable from 50 kHz to 1 MHz. The LM5116WG drives external high-side and low-side NMOS power switches with adaptive dead-time control. A user-selectable diode emulation mode enables discontinuous mode operation for improved efficiency at light load conditions. A low quiescent current shutdown disables the controller and consumes less than 10 µA of total input current. Additional features include a high voltage bias regulator, automatic switch-over to external bias for improved efficiency, frequency synchronization, cycle by cycle current limit and adjustable line under-voltage lockout. The device is available in a CPGA-20 high temperature ceramic package with the thermal shutdown feature disabled.
