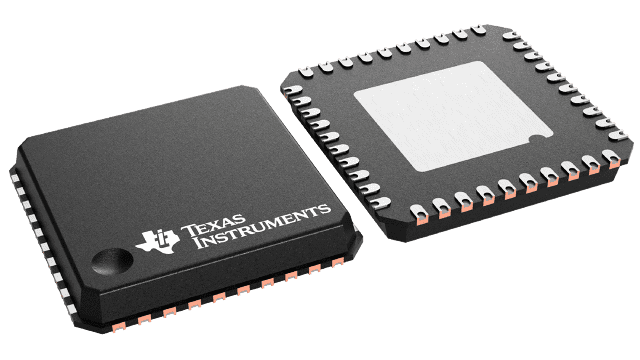

LM5140QRWGTQ1 Texas Instruments - Yeehing Electronics
Wide Vin Dual 2.2MHz low Iq Synchronous Buck Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 2 Output |
| Switching Frequency | 2.2 MHz, 440 kHz |
| Duty Cycle - Max | 50 % |
| Input Voltage | 3.8 V to 65 V |
| Output Voltage | 1.5 V to 15 V |
| Output Current | 150 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Isolation | Non-Isolated |
| Operating Temperature Range | - 40 C to + 150 C |
| Product | Switching Controllers |
| Series | LM5140-Q1 |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Fall Time | 3 ns |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.8 V to 65 V |
| Product Type | Switching Controllers |
| Rise Time | 4 ns |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| LM5140QRWGTQ1 Datasheet |
More Information
The LM5140-Q1 is a dual synchronous buck controller intended for high voltage wide VIN step-down converter applications. The control method is based on current mode control. Current mode control provides inherent line feedforward, cycle-by-cycle current limiting, and easier loop compensation.
