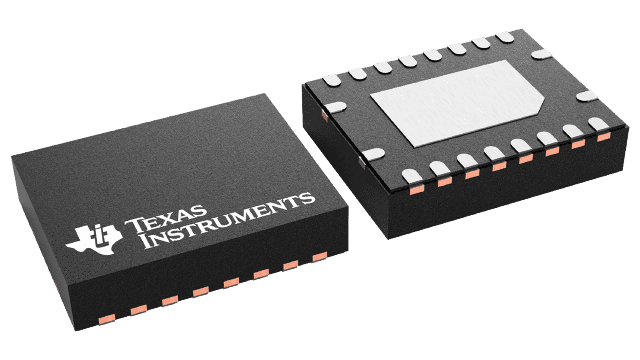

LM5145QRGYRQ1 Texas Instruments - Yeehing Electronics

Automotive 75-V synchronous buck DC/DC controller with wide duty-cycle range

Pricing (USD)

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

More Information

The LM5145-Q1 75-V synchronous buck controller regulates from a high input voltage source or from an input rail subject to high-voltage transients, minimizing the need for external surge suppression components. A high-side switch minimum on-time of 40 ns gives large step-down ratios, enabling the direct step-down conversion from a 48-V nominal input to low-voltage rails for reduced system complexity and solution cost. The LM5145-Q1 continues to operate during input voltage dips as low as 5.5 V, at nearly 100% duty cycle if needed, making it an excellent choice for high-power automotive DC/DC regulators, automotive motor drives, and HEV/EV power compliant to LV-148.
