LM5146QRGYTQ1 Texas Instruments - Yeehing Electronics

Automotive 100-V synchronous buck DC/DC controller with wide duty-cycle range

Pricing (USD)

Quantity	Unit Price
1 — 99	4.519
100 — 249	3.684
250 — 999	2.896
1,000 +	1.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

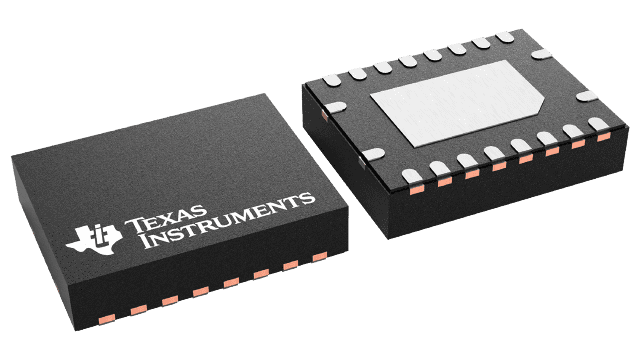

Package / Case	VQFN-20
Output Voltage	0.8 V to 60 V
Output Current	3.5 A
Number of Outputs	1 Output
Input Voltage MAX	100 V
Topology	Buck
Input Voltage MIN	5.5 V
Switching Frequency	100 kHz to 1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM5146
Packaging	Reel
Input Voltage	5.5 V to 100 V
Operating Temperature Range	- 40 C to + 125 C
Type	Synchronous
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	5.5 V

For more information, please refer to datasheet

Documents

LM5146QRGYTQ1 Datasheet

More Information

The LM5146-Q1 100-V synchronous buck controller regulates from a high input voltage source or from an input rail subject to high voltage transients, minimizing the need for external surge suppression components. A high-side switch minimum on-time of 40 ns gives large step-down ratios, enabling the direct step-down conversion from a 48-V nominal input to low-voltage rails for reduced system complexity and solution cost. The LM5146-Q1 continues to operate during input voltage dips as low as 5.5 V, at nearly 100% duty cycle if needed, making it an excellent choice for high-performance 48-V battery automotive applications, ADAS (surround view ECU) and HEV/EV systems.
