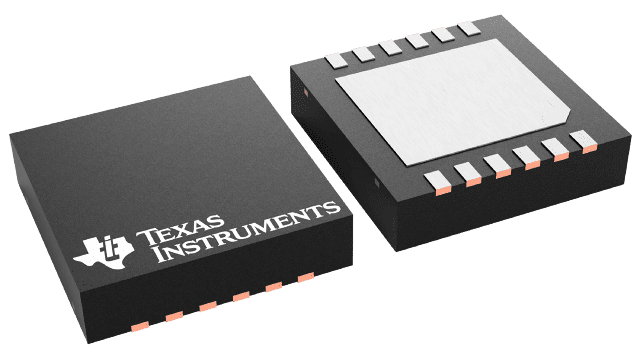

LM5160ADNTJ Texas Instruments - Yeehing Electronics
LM5160A Wide Input 65V, 2A Synchronous Buck / Fly-Buck™ Converter
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.458 |
100 — 249 | 1.204 |
250 — 999 | 0.865 |
1,000 + | 0.38 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-12 |
Output Voltage | 2 V to 60 V |
Output Current | 2 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 65 V |
Topology | Buck, Flyback |
Input Voltage MIN | 4.5 V |
Switching Frequency | 1 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LM5160A |
Packaging | Reel |
Height | 0.8 mm |
Input Voltage | 4.5 V to 65 V |
Length | 4 mm |
Operating Temperature Range | - 40 C to + 125 C |
Type | Synchronous Step-Down Converter |
Width | 4 mm |
Brand | Texas Instruments |
Shutdown | Shutdown |
Operating Supply Current | 2.3 mA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 4500 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 4.5 V |
Unit Weight | 0.001379 oz |
For more information, please refer to datasheet
Documents
LM5160ADNTJ Datasheet |
More Information
The LM5160/A is a 65-V, 2-A synchronous step-down converter with integrated high-side and low-side MOSFETs. The adaptive constant on-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output voltage regulation over the entire operating temperature range. The on-time varies inversely with input voltage resulting in nearly constant switching frequency.
