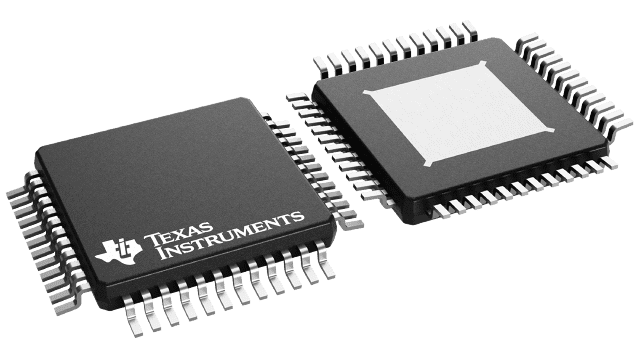

LM5170QPHPTQ1 Texas Instruments - Yeehing Electronics
Multiphase bidirectional current controller, AEC-Q100 qualified
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 9.978 |
100 — 249 | 8.716 |
250 — 999 | 6.72 |
1,000 + | 1.37 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Controllers |
RoHS | Y |
Topology | Boost, Buck |
Number of Outputs | 2 Output |
Switching Frequency | 50 kHz to 500 kHz |
Duty Cycle - Max | 100 % |
Input Voltage | 3 V to 85 V |
Output Voltage | 80 V |
Output Current | 50 A |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 150 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-48 |
Qualification | AEC-Q100 |
Packaging | Reel |
Description/Function | Multiphase bidirectional current controller |
Isolation | Non-Isolated |
Operating Temperature Range | - 40 C to + 150 C |
Product | Switching Controllers |
Series | LM5170-Q1 |
Brand | Texas Instruments |
Shutdown | Shutdown |
Development Kit | LM5170EVM-BIDIR |
Fall Time | 4 ns |
Moisture Sensitive | Yes |
Operating Supply Current | 1 mA |
Operating Supply Voltage | 3 V to 85 V |
Product Type | Switching Controllers |
Rise Time | 5 ns |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.008822 oz |
For more information, please refer to datasheet
Documents
LM5170QPHPTQ1 Datasheet |
More Information
The LM5170-Q1 controller provides the essential high voltage and precision elements of a dual-channel bidirectional converter for automotive 48-V and 12-V dual battery systems. It regulates the average current flowing between the high voltage and low voltage ports in the direction designated by the DIR input signal. The current regulation level is programmed through analog or digital PWM inputs.
