Texas Instruments
LM5175RHFR
LM5175RHFR
Regular price
$2.10 USD
Regular price
Sale price
$2.10 USD
Unit price
per
Couldn't load pickup availability

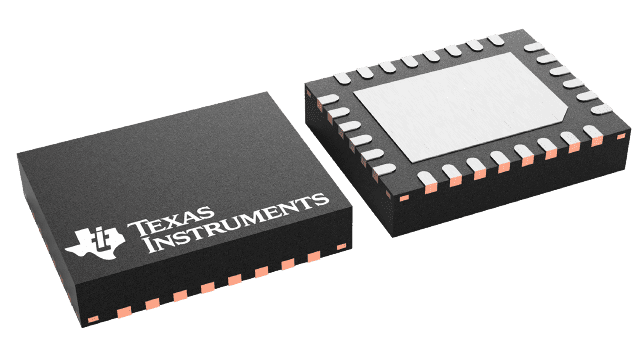

LM5175RHFR Texas Instruments - Yeehing Electronics
42V Wide Vin 4-Switch Synchronous Buck-Boost Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.522 |
| 100 — 249 | 4.502 |
| 250 — 999 | 3.538 |
| 1,000 + | 2.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost, Buck |
| Number of Outputs | 1 Output |
| Switching Frequency | Adjustable |
| Input Voltage | 3.5 V to 42 V |
| Output Voltage | 0.8 V to 55 V |
| Output Current | 10 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-28 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Synchronous Boost or Buck Controller |
| Series | LM5175 |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.65 mA |
| Operating Supply Voltage | 3.5 V to 42 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002360 oz |
For more information, please refer to datasheet
Documents
| LM5175RHFR Datasheet |
More Information
The LM5175 is a synchronous four-switch buck-boost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5175 operates over a wide input voltage range of 3.5 V to 42 V (60 V maximum) to support a variety of applications.
