Texas Instruments
LM5180QNGUTQ1
LM5180QNGUTQ1
Couldn't load pickup availability

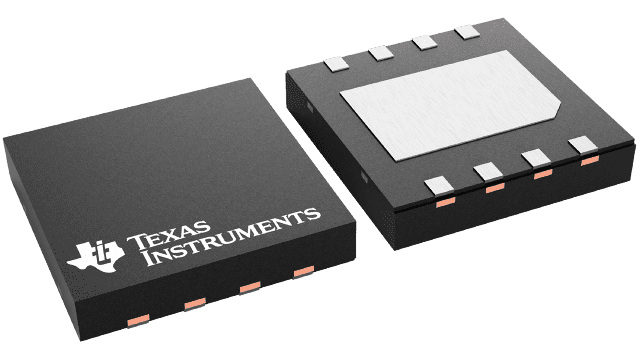

LM5180QNGUTQ1 Texas Instruments - Yeehing Electronics
Automotive 65-VIN no-opto flyback converter with 100-V, 1.5-A integrated MOSFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.048 |
| 100 — 249 | 3.3 |
| 250 — 999 | 2.594 |
| 1,000 + | 1.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Output Voltage | 100 V |
| Output Current | 1.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 65 V |
| Topology | Flyback |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 350 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | LM5180-Q1 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 65 V |
| Type | DC/DC Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 260 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
For more information, please refer to datasheet
Documents
| LM5180QNGUTQ1 Datasheet |
More Information
The LM5180-Q1 is a primary-side regulated (PSR) flyback converter with high efficiency over a wide input voltage range of 4.5 V to 65 V. The isolated output voltage is sampled from the primary-side flyback voltage, eliminating the need for an optocoupler, voltage reference, or third winding from the transformer for output voltage regulation. The high level of integration results in a simple, reliable and high-density design with only one component crossing the isolation barrier. Boundary conduction mode (BCM) switching enables a compact magnetic solution and better than ±1.5% load and line regulation performance. An integrated 100-V power MOSFET provides output power up to 7 W with enhanced headroom for line transients.
