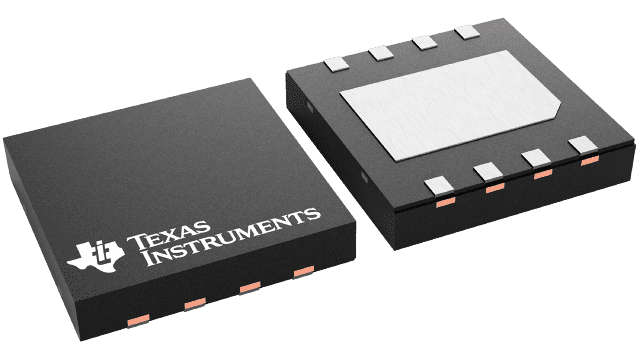

LM5181NGUR Texas Instruments - Yeehing Electronics
65-VIN no-opto flyback converter with 100-V, 0.75-A integratedxa0MOSFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.33 |
| 100 — 249 | 1.924 |
| 250 — 999 | 1.382 |
| 1,000 + | 0.73 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM5181NGUR Datasheet |
More Information
The LM5181 is a primary-side regulated (PSR) flyback converter with high efficiency over a wide input voltage range of 4.5 V to 65 V. The isolated output voltage is sampled from the primary-side flyback voltage, eliminating the need for an optocoupler, voltage reference, or third winding from the transformer for output voltage regulation.
