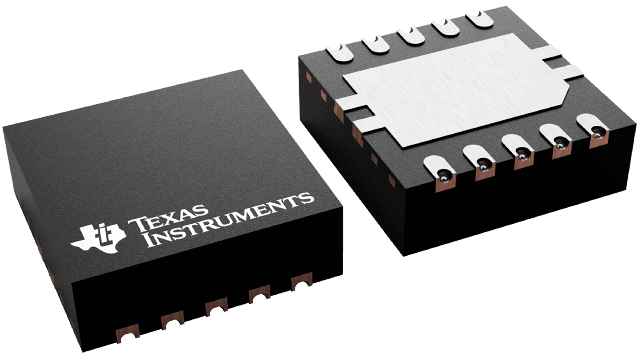

LM53600NQDSXTQ1


YeeHing #: Y012-LM53600NQDSXTQ1
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM53600NQDSXTQ1 Texas Instruments - Yeehing Electronics

Automotive 3.5-V to 36-V, 650-mA synchronous 2.1-MHz step-down converter

Pricing (USD)

Quantity Unit Price
1 — 99 4.299
100 — 249 3.767
250 — 999 2.641
1,000 + 1.49

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-10
Output Voltage 3.3 V
Output Current 650 mA
Number of Outputs 1 Output
Input Voltage MAX 36 V
Topology Buck
Input Voltage MIN 3.55 V
Switching Frequency 2.1 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Qualification AEC-Q100
Series LM53600-Q1
Packaging Reel
Input Voltage 3.55 V to 36 V
Operating Temperature Range - 40 C to + 150 C
Type Synchronous Buck Regulator
Brand Texas Instruments
Shutdown Shutdown
Moisture Sensitive Yes
Operating Supply Current 23 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 3.55 V
Unit Weight 0.000628 oz

For more information, please refer to datasheet

Documents

LM53600NQDSXTQ1 Datasheet

More Information

The LM53600-Q1 and LM53601-Q1 synchronous buck regulator devices are optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Load current up to 650 mA is supported by the LM53600-Q1, while the LM53601-Q1 supports up to 1000 mA. Advanced high-speed circuitry allows the LM53600-Q1 and LM53601-Q1 devices to regulate from an input of 18 V to an output of 3.3 V at a fixed frequency of 2.1 MHz. Innovative architecture allows the device to regulate a 3.3-V output from an input voltage of only 3.8 V. The input voltage range up to 36 V, with transient tolerance of up to 42 V, eases input surge protection design. An open drain reset output, with filtering and delayed release, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transitions between PWM and PFM modes, along with a quiescent current of only 23 µA, ensures high efficiency and superior transient response at all loads. Few external components are needed allowing the generation of compact PCB layout. While the LM53600-Q1 and LM53601-Q1 devices are Q1 rated, electrical characteristics are ensured across a junction temperature range of –40°C up to 150°C.
