LM53601LQDSXTQ1 Texas Instruments - Yeehing Electronics

Automotive 3.5-V to 36-V, 1-A synchronous 2.1-MHz step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	4.46
100 — 249	3.908
250 — 999	2.74
1,000 +	1.55

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

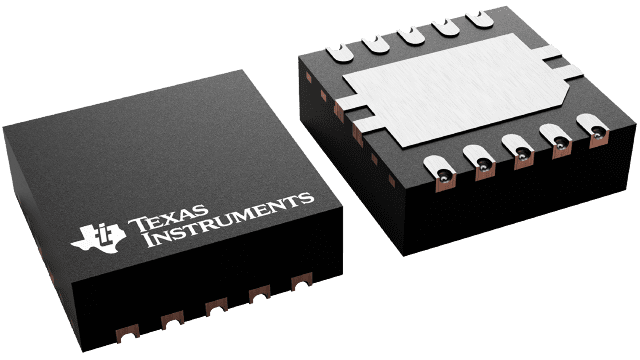

Package / Case	WSON-10
Output Voltage	5 V
Output Current	1 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Buck
Input Voltage MIN	3.55 V
Switching Frequency	2.1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Qualification	AEC-Q100
Series	LM53601-Q1
Packaging	Reel
Input Voltage	3.55 V to 36 V
Operating Temperature Range	- 40 C to + 150 C
Type	Synchronous Buck Regulator
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	23 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.55 V
Unit Weight	0.000628 oz

For more information, please refer to datasheet

Documents

LM53601LQDSXTQ1 Datasheet

More Information

The LM53600-Q1 and LM53601-Q1 synchronous buck regulator devices are optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Load current up to 650 mA is supported by the LM53600-Q1, while the LM53601-Q1 supports up to 1000 mA. Advanced high-speed circuitry allows the LM53600-Q1 and LM53601-Q1 devices to regulate from an input of 18 V to an output of 3.3 V at a fixed frequency of 2.1 MHz. Innovative architecture allows the device to regulate a 3.3-V output from an input voltage of only 3.8 V. The input voltage range up to 36 V, with transient tolerance of up to 42 V, eases input surge protection design. An open drain reset output, with filtering and delayed release, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transitions between PWM and PFM modes, along with a quiescent current of only 23 µA, ensures high efficiency and superior transient response at all loads. Few external components are needed allowing the generation of compact PCB layout. While the LM53600-Q1 and LM53601-Q1 devices are Q1 rated, electrical characteristics are ensured across a junction temperature range of –40°C up to 150°C.
